UN-ALS408K

Ürün Özellikleri:

· 32 mm büyük çerçeve sensörü için geliştirildi

· Mükemmel optik performans, merkez ve kenarın düzgün görüntülenmesi

Ürün bilgisi: İsteğe bağlı olarak özel tasarımlar yapılabilir.

For color sorting equipments, textile and non-woven fabric surface testing, flexible packaging & large-format printing quality checking, plastic film and paper web flaw detection, flat glass and building panel surface screening, metal strip preliminary defect inspection, lumber board sorting and agricultural material sorting.

· Developed for 40mm big frame sensor

· Excellent optical performance, uniform imaging of center and edge

Product information: Custom designs are available upon request.

For inspection of lithium battery separators and coated copper & aluminum foils, high-end printing and anti-counterfeit packaging, precision testing of PCBs and 3C electronics, and surface defect detection of metal sheets and coils.

· Developed for 64mm big frame sensor
· Low distortion
· Compatible for 2K, 4K, 8K line scan camera
· Excellent optical performance, uniform imaging of center and edge

Product information: Custom designs are available upon request.

For inspection of lithium battery separators and coated copper & aluminum foils, high-end printing and anti-counterfeit packaging, precision testing of PCBs and 3C electronics, surface defect detection of metal sheets and coils, flat panel display & glass defect inspection, and dimension measurement of various rolled materials.

· Developed for 64mm big frame sensor
· Low distortion
· Compatible for 2K, 4K, 8K line scan camera
· Excellent optical performance, uniform imaging of center and edge

Product information: Custom designs are available upon request.

· Yüksek bağıl aydınlatma ve yüksek kontrast

· Düşük distorsiyon ve mükemmel köşe parlaklığı

· Yüksek çözünürlük

· 1'' ve 1.1'' 20MP kamerayla uyumlu

For high-end PCB AOI micro-inspection, Mini/Micro LED panel pixel defect detection, photovoltaic silicon wafer EL hidden crack inspection, narrow high-temperature metal strip flaw detection, luxury anti-counterfeit printing texture inspection, electronic ceramic substrate microscopic testing, UAV high-precision aerial survey mapping and ultra-precise online dimensional measurement of micro electronic components.

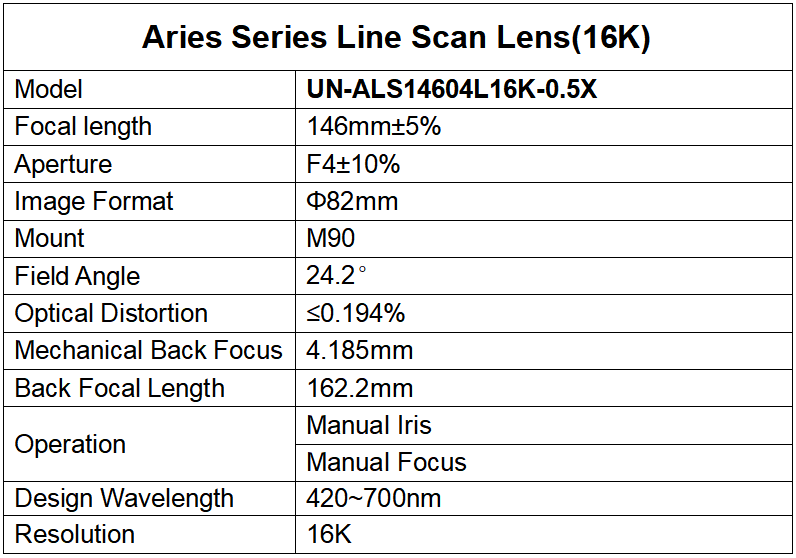

· Developed for 82mm big frame sensor
· Low distortion
· Compatible for 16K line scan camera
· Excellent optical performance, uniform imaging of center and edge

Product information: Custom designs are available upon request.
