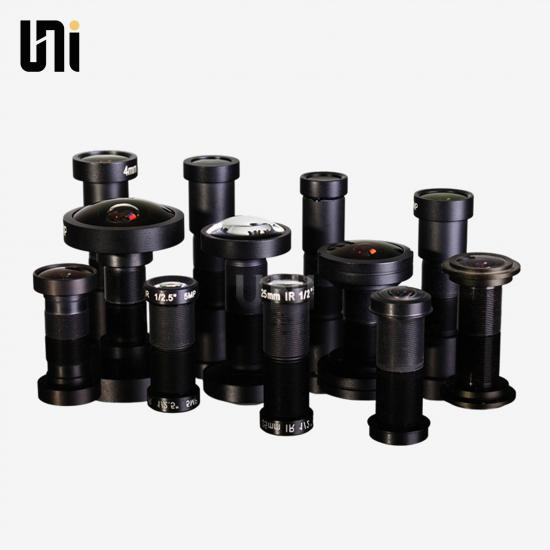

| Scanner Lenses | ||||||||
| No. | Model |
Focal length
(mm)
|
Format | Mount |
Aperture
(F/#)
|
F.O.V
(H*V*D)
|
Resolution |
Dimension
(mm)
|
| 1 | UN-UW021032C-5MP | 2.1 | 1/4" | M12 | 3.2 | 83°*58°*93.6° | 5MP | φ14.0*L16.35 |
| 2 | UN-UW0234C-5MP | 2.3 | 1/4" | M12 | 4.0 | 65°*45°*85° | 5MP | φ14.0*L10.60 |
| 3 | UN-UW00297045C-5MP | 2.97 | 1/2.5" | M12 | 4.5 | 88°*57°*105° | 5MP | φ14.0*L18.00 |
| 4 | UN-UW00325025C-5MP | 3.25 | 1/2.5" | M12 | 2.5 | 86°*56°*100° | 5MP | φ14.0*L13.33 |
| 5 | UN-UW00355056C-5MP | 3.55 | 1/4" | M12 | 5.6 | 54°*43°*70° | 5MP | φ14.0*L9.63 |
| 6 | UN-UW004555C-10MP | 4.55 | 1/2.3" | M12 | 5.0 | 71°*50°*82° | 10MP | φ14.0*L18.85 |
| 7 | UN-UW00455032C-12MP | 4.55 | 1/2.3" | M12 | 3.2 | 71°*50°*82° | 12MP | φ14.0*L17.43 |
| 8 | UN-UW00745024C-5MP | 7.45 | 1/2.5" | M12 | 2.4 | 43°*35°*55° | 5MP | φ14.0*L9.55 |
| 9 | UN-UW0853C-8MP | 8.5 | 1/1.8" | M12 | 3.0 | 44.1°*33.2°*54.3° | 8MP | φ14.00*L11.94 |
| 10 | UN-UW12056C-8.8MP | 12 | 1/1.8" | M12 | 5.6 | 32°*25°*41° | 8.8MP | φ14.0*L13.10 |
| 11 | UN-UW16056C-16MP | 16 | 1/1.8" | M12 | 5.6 | 26.8°*15.2°*30.6° | 16MP | φ14.0*L16.32 |
| 12 | UN-UW25056C-5MP | 25 | 1/2" | M12 | 5.6 | 14.7°*11.1°*18.3° | 5MP | φ14.00*L19.42 |
